EKI-2000 Series

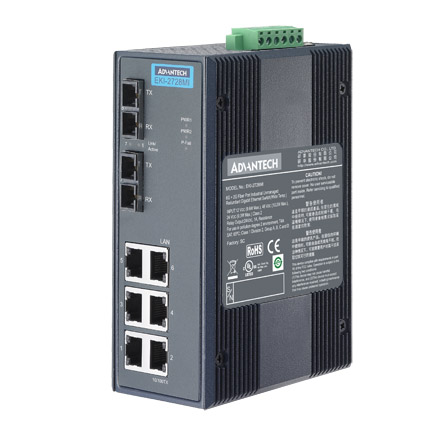

EKI-2728S

6千兆电口+2千兆单模SC光口 非网管工业以太网交换机

  • 提供6 x 10/100/1000 Mbps以太网端口
  • 提供2 x 1000 Mbps单模SC接口光纤端口
  • 支持全双工 /半双工流量控制
  • 支持 MDI/MDI-X 自动跨接
  • 支持高达9kb的巨型帧传输
  • 提供冗余 12 ~ 48 VDC 电源输入
  • 提供灵活的安装方式：DIN导轨安装，面板式安装
  • 巨型帧：9216字节

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 6千兆电口+2千兆单模SC光口 非网管工业以太网交换机

规格

Certification
EMI
  • CE, FCC Class A
EMS
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
  • -
Environment
Temperature (Min. Operating)
  • -10°C (14°F)
Temperature (Max. Operating)
  • 60°C (140°F)
Operating Temperature
  • -10 ~ 60°C (14 ~ 140°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
  • 2
Fiber Port Interface
  • Single-Mode
Fiber Port Connector Type
  • SC Type
Fiber Transmission Distance
  • UP to 10 km
Fiber Transmission Speed
  • 1000 Mbps
RJ-45 Port Number
  • 6
RJ-45 Port Connector Type
  • RJ-45
RJ-45 Transmission Distance
  • 100 m
RJ-45 Transmission Speed
  • 10/100/1000 Mbps
Mechanism
Mounting (DIN-rail)
  • Yes
Mounting (Stack)
  • -
Mounting (Panel)
  • -
Mounting (Wall)
  • Yes
Mounting (Rack Mount)
  • -
Mounting (Pole Mount)
  • -
Dimensions (W x H x D)
  • 59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.)
Enclosure (Plastic)
  • -
IP Rating
  • IP30
PoE Information
PoE Port Number
  • -
PoE Budget
  • -
PoE Output
  • -
Support PoE
  • No
Power
Power Connector Type
  • 6-pin removable screw terminal (power & relay)
Power Consumption
  • Max. 7W
Power Input (AC)
  • 24 VAC
Power Input (DC)
  • 12 ~ 48 VDC
Power Input (PoE)
  • -
Power Input (Battery)
  • -
Power Operating Current
  • 1A @ 24 VDC
Redundant Dual Inputs
  • Yes
Warranty
Warranty Period
  • 5 years
Protection
Overload Current
  • Present
Reverse Polarity
  • Present

特点和优势


Advantech's EKI-2000 Series are the best deal offer for your Ethernet connections. Their super-slim IP30 metal casing design provides high reliability to quickly deliver continuous data transmission with high degree of security, making them an ideal option for your Ethernet solution.

Contact Us

Unmanaged Switch Plus Function Beyond Simple Connectivity

Unmanaged switch PLUS is a product concept that includes several innovative series. It introduces intelligent added features tailored for OT engineers, solving real-world challenges without IT complexity. Designed to enhance productivity, it keeps networking simple and effective in industrial environments.

LEARN MORE
High Versatile Switch Products

High Versatile Switch Products

  • Ranging from 5 to 28 ports. More than 30 skus.
  • Support din rail, wall mount or rack mount design
  • Support fast Ethernet or gigabit transmission
  • Optional fiber ports help you conquer the distance boundary
  • PoE functionality serves power and data transmission with one cable
Download Selection Guide
Plug-and-Play

Plug-and-Play

  • No setting efforts
  • No compatibility issues
  • Goes along with any network infrastructure
  • Slim size for instant installation with minimum costs and efforts, allowing users to upgrade to an intelligent plant at ease
Mini 8-cm Ethernet Switch
Robust Communication Solutions

Robust Communication Solutions

  • Super slim IP30 metal casing provides reliable & compact management
  • Support wide operating temperatures from -40 to 75oC
