EKI-2000 Series

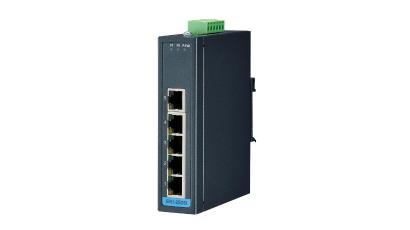

EKI-2525I-C (Sold in China only)

5FE非网管型工业以太网交换机，-40～75℃，低交流

  • Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps Auto-Negotiation
  • Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
  • Supports redundant 12 ~ 48 VDC power input and ALM relay
  • Supports wide operating temperatures from -40 to 75°C

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 5FE非网管型工业以太网交换机，-40～75℃，低交流

规格

Ethernet Communication
Ethernet Standard
  • IEEE 802.3 , 802.3u , 802.3x
RJ-45 Port Number
  • 5
RJ-45 Transmission Distance
  • Up to 100 m
LAN Interface
Ethernet
  • 10/100 Mbps, auto MDI/MDIX
Power
Power Input (DC)
  • 12 ~ 48 VDC, redundant dual inputs
Power Consumption
  • 1.6W
Environment
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
  • 10~95% (non-condensing)
Storage Humidity
  • 10~90% (non-condensing)
Mechanism
Mounting
  • DIN-rail, Wall mount
Dimensions (W x H x D)
  • 30 x 120 x 95 mm (1.18 x 4.72 x 3.74 in.)
IP Rating
  • IP30
Certification
Safety
  • UL 62368
EMI
  • CE, FCC Class A
EMS
  • EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Shock
  • IEC 60068-2-27
Freefall
  • IEC 60068-2-32
Vibration
  • IEC 60068-2-6
Warranty
Warranty Period
  • 5 years
