EKI-2000 Series

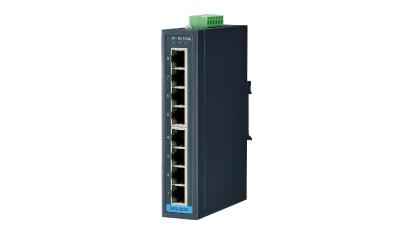

EKI-2528-C (Sold in China only)

8FE非网管型以太网交换机

  • Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps Auto-Negotiation
  • Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
  • Supports redundant 12 ~ 48 VDC power input and ALM relay

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 8FE非网管型以太网交换机

规格

Ethernet Communication
Ethernet Standard
  • IEEE 802.3 , 802.3u , 802.3x
RJ-45 Port Number
  • 8
LAN Interface
Ethernet
  • 10/100 Mbps, auto MDI/MDIX
Environment
Operating Temperature
  • -10 ~ 60°C (14 ~ 140°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
  • 10~95% (non-condensing)
Storage Humidity
  • 10~90% (non-condensing)
Power
Power Input (DC)
  • 12 ~ 48 VDC, redundant dual inputs
Power Consumption
  • 1.6W
Mechanism
Dimensions (W x H x D)
  • 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mounting
  • DIN-rail, Wall mount
IP Rating
  • IP30
Certification
Safety
  • UL 62368
EMI
  • CE, FCC Class A
EMS
  • EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Shock
  • IEC 60068-2-27
Freefall
  • IEC 60068-2-32
Vibration
  • IEC 60068-2-6
Warranty
Warranty Period
  • 5 years
