EKI-2000 Series

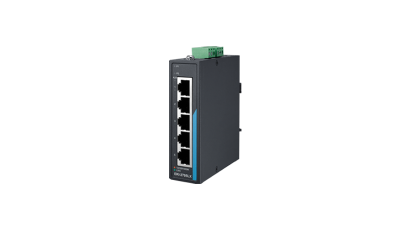

EKI-2705LX

5端口2.5GbE非网管型工业以太网交换机

  • 提供5*2.5GbE端口，带自动MDI/MDIX
  • 支持10M/100M/1000M/2.5Gbps自动协商
  • 支持高达12k的巨型帧传输
  • 提供薄型DIN导轨
  • 支持冗余12-60VDC电源输入
  • 双电源输入和继电器

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 5端口2.5GbE非网管型工业以太网交换机

规格

Ethernet Communication
Ethernet Standard
  • IEEE 802.3 , 802.3u , 802.3ab , 802.3bz
RJ-45 Port Number
  • 5
Power
Power Input (DC)
  • 12 ~ 60 VDC
Power Consumption
  • 6W
Mechanism
Dimensions (W x H x D)
  • 28 x 90 x 99 mm
Mounting
  • DIN-rail, Wall mount
Environment
Operating Temperature
  • -10 ~ 60°C (14 ~ 140°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
  • 10~95% (non-condensing)
Certification
Safety
  • LVD 62368-1
EMI
  • CE, FCC Class A

特点和优势

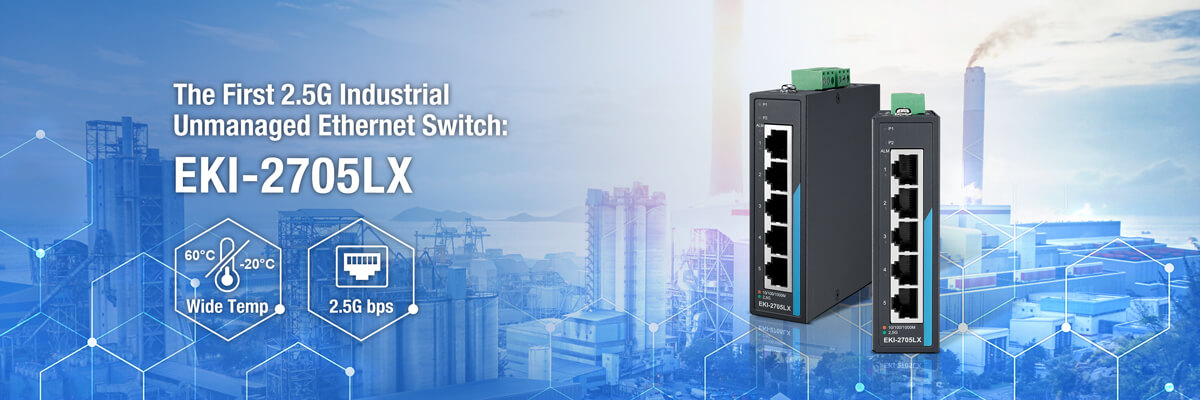

EKI-2705LX

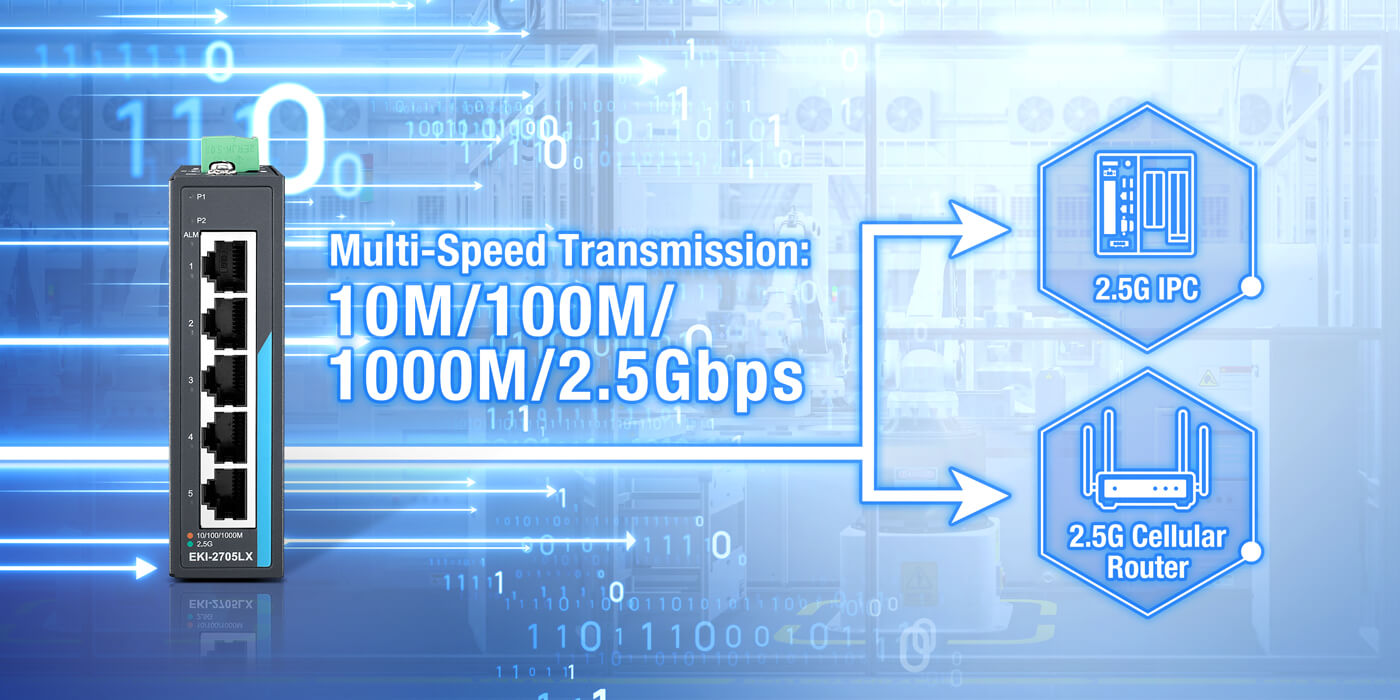

Unlock 2.5G Speeds – No Cable Changes Required

Unlock 2.5G Speeds – No Cable Changes Required

The EKI-2705LX is an unmanaged industrial switch with 5 x 2.5GbE ports. It enables you to instantly upgrade your network to leverage 2.5GbE-enabled devices without requiring new network cables. Featuring an industrial-grade design that ensures high quality, stability, and efficiency, along with a plug-and-play setup, the EKI-2705LX makes it easy to create an affordable, high-speed network environment.

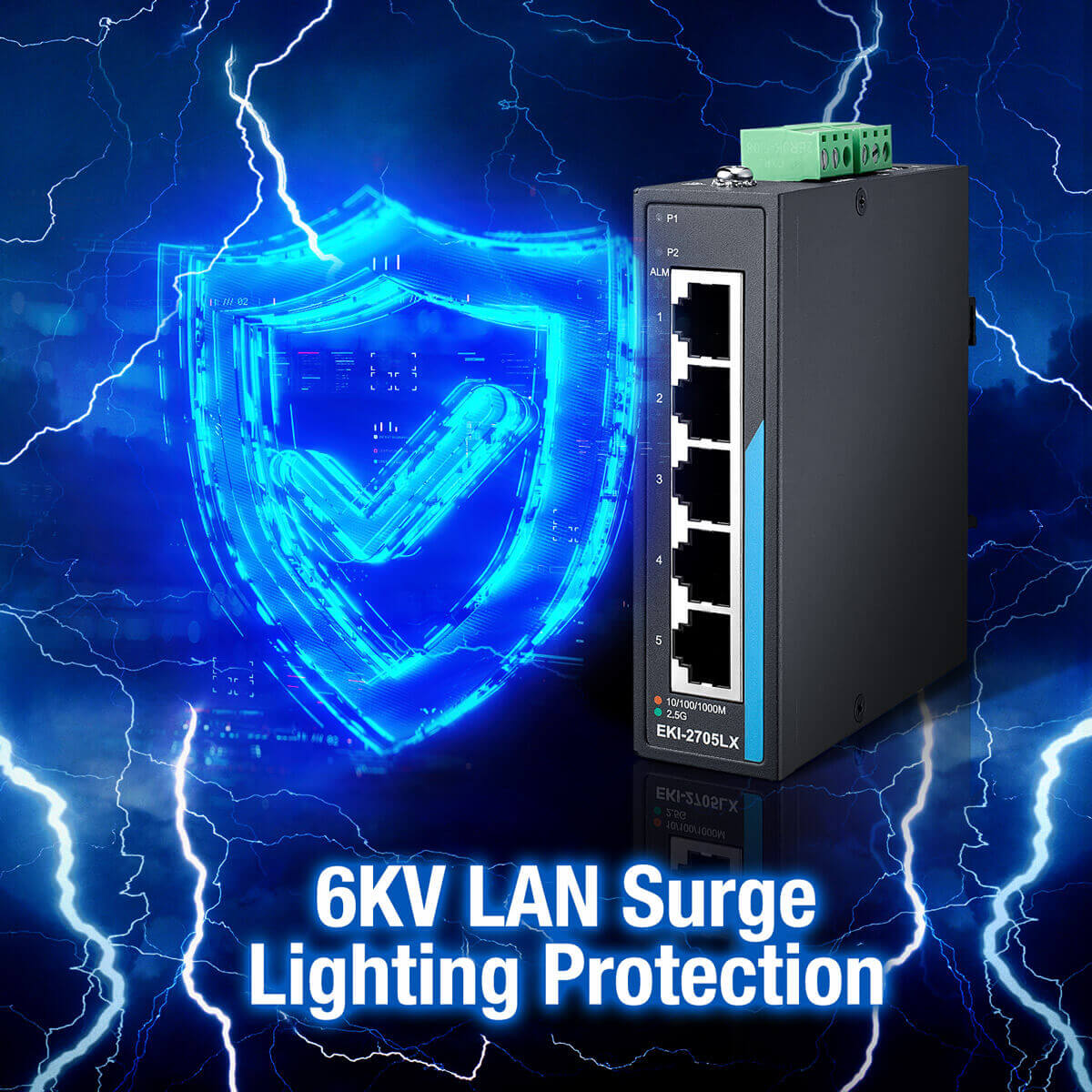

Protect Your Network with 6KV LAN Surge Protection

Protect Your Network with 6KV LAN Surge Protection

Shield your network from high-voltage surges. Ideal for complex electrical environments, long-distance deployments, and mission-critical scenarios, it delivers stable, secure operations while minimizing maintenance and downtime costs.

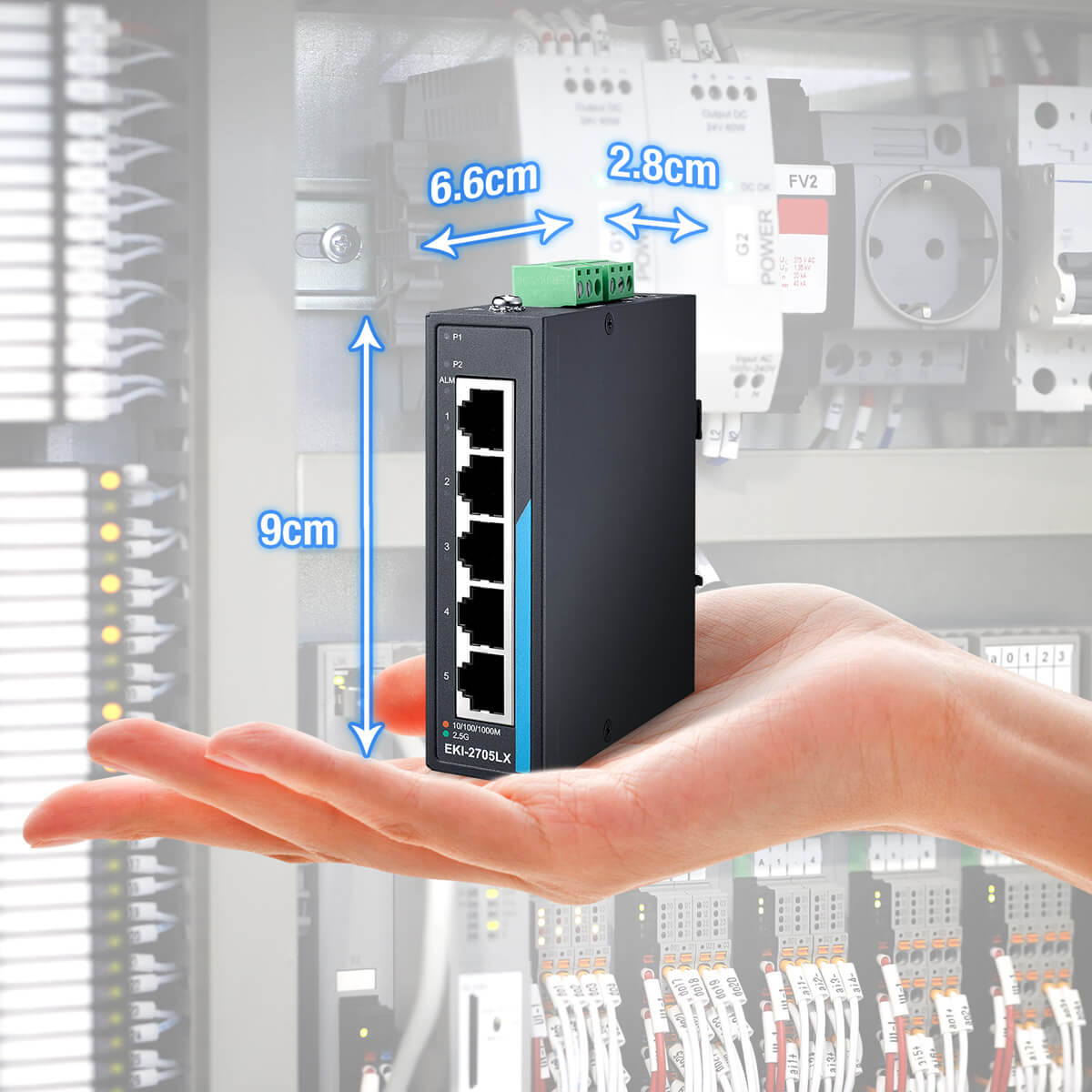

Compact Size, Industrial Strength

Compact Size, Industrial Strength

As the smallest industrial-grade 2.5G unmanaged switch, it offers unmatched flexibility for installation in compact spaces, ensuring powerful performance in any environment.

Support Wide Operating Temperatures From -10 to 60 °C

Support Wide Operating Temperatures From -10 to 60 °C

Designed for versatility, EKI-2705LX supports a wide operating temperature range from -10 to 60°C, ensuring reliable performance in harsh environments.
Support Jumbo Frame Transmission Up to 12K

Support Jumbo Frame Transmission Up to 12K

Ideal for data-heavy applications like video streaming, big data analytics, and virtualization.
Dual Power Inputs for Flexibility and Redundancy

Dual Power Inputs for Flexibility and Redundancy

Offers VDC and VAC power inputs for flexible selection and redundancy. The power alarm ensures timely alerts for enhanced system reliability.
