EKI-2000 Series

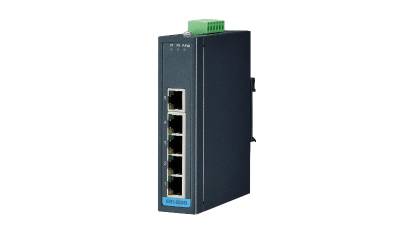

EKI-2525I

5端口宽温非网管型工业以太网交换机

  • 提供5个自适应快速以太网口
  • 支持10/100Mbps自适应
  • 提供广播风暴保护
  • 结构紧凑，支持DIN导轨安装/壁挂式安装
  • 支持12~48VDC冗余电源输入和继电器报警
  • 宽工作温度：-40~75° C

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 5端口宽温非网管型工业以太网交换机

规格

General
Ethernet Port Count
  • 5
Mounting
  • DIN, Panel
Power
  • 12-48VDC
Technology
  • Ethernet
Temperature
  • -40 to 75C
Unmanaged
  • Yes
Certification
EMI
  • CE, FCC Class A
EMS
  • EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety
  • UL/cUL 60950-1, Class I Division 2
Environment
Temperature (Min. Operating)
  • -40°C (-40°F)
Temperature (Max. Operating)
  • 75°C (167°F)
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45 Port Number
  • 5
RJ-45 Port Connector Type
  • RJ-45
RJ-45 Transmission Distance
  • 100 m
RJ-45 Transmission Speed
  • 10/100 Mbps
Mechanism
Mounting (DIN-rail)
  • Yes
Mounting (Wall)
  • Yes
Dimensions (W x H x D)
  • 30 x 120 x 95 mm (1.18 x 4.72 x 3.74 in.)
IP Rating
  • IP30
Weight
  • -
PoE Information
Support PoE
  • No
Power
Power Connector Type
  • 6-pin removable screw terminal
Power Consumption
  • 2.88W
Power Input (AC)
  • -
Power Input (DC)
  • 12 ~ 48 VDC
Redundant Dual Inputs
  • Yes
Warranty
Warranty Period
  • 5 years
Protection
Overload Current
  • Present
Reverse Polarity
  • Present
Place of Production
Place of production
  • China
  • Taiwan

特点和优势


Advantech's EKI-2000 Series are the best deal offer for your Ethernet connections. Their super-slim IP30 metal casing design provides high reliability to quickly deliver continuous data transmission with high degree of security, making them an ideal option for your Ethernet solution.

Contact Us

Unmanaged Switch Plus Function Beyond Simple Connectivity

Unmanaged switch PLUS is a product concept that includes several innovative series. It introduces intelligent added features tailored for OT engineers, solving real-world challenges without IT complexity. Designed to enhance productivity, it keeps networking simple and effective in industrial environments.

LEARN MORE
High Versatile Switch Products

High Versatile Switch Products

  • Ranging from 5 to 28 ports. More than 30 skus.
  • Support din rail, wall mount or rack mount design
  • Support fast Ethernet or gigabit transmission
  • Optional fiber ports help you conquer the distance boundary
  • PoE functionality serves power and data transmission with one cable
Download Selection Guide
Plug-and-Play

Plug-and-Play

  • No setting efforts
  • No compatibility issues
  • Goes along with any network infrastructure
  • Slim size for instant installation with minimum costs and efforts, allowing users to upgrade to an intelligent plant at ease
Mini 8-cm Ethernet Switch
Robust Communication Solutions

Robust Communication Solutions

  • Super slim IP30 metal casing provides reliable & compact management
  • Support wide operating temperatures from -40 to 75oC
How tough Advantech switch is
