Industrial Ethernet Switches

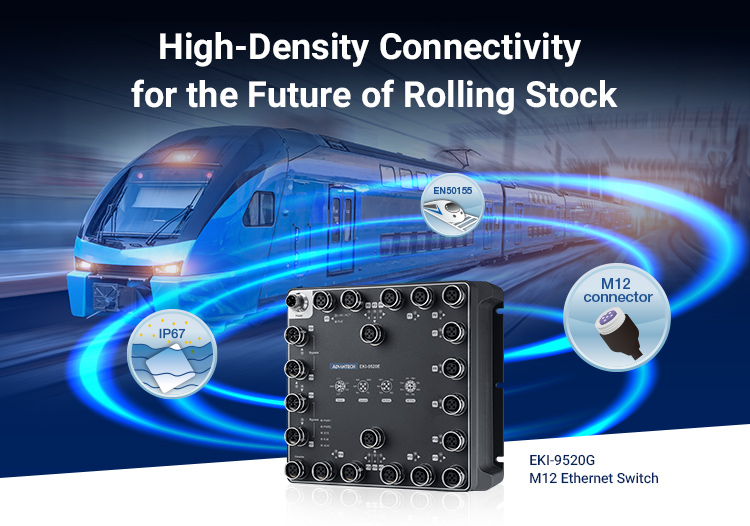

EKI-9520G Series

EN 50155 20-port Ethernet Switch

EN 50155 20-port Ethernet Switch

Características y beneficios

As global rail operators accelerate their investment in passenger digitalization—spanning onboard Wi-Fi, infotainment, and real-time passenger information—deploying robust, high-density networking infrastructure has become a strategic imperative.

Introducing the Advantech EKI-9520G Series: an EN50155-certified Layer 2, 20-port Ethernet switch designed specifically to handle the demanding requirements for modern railway comfort and operational networks.

20 Gigabit ports

IEC 61076-2-010 M12 push-pull

120W PoE

IP67

-40°C to 70°C

Power Input 24-110VDC

Thermal Monitoring

    Lorem Ipsum is simply dummy text of the printing and typesetting industry.

Railway Certified

    Fully compliant with EN 50155, EN 45545-2 (Fire Prevention), and EN 61373 (Shock and Vibration).

Cybersecure

    Designed to meet IEC 62443-4-2 standards.

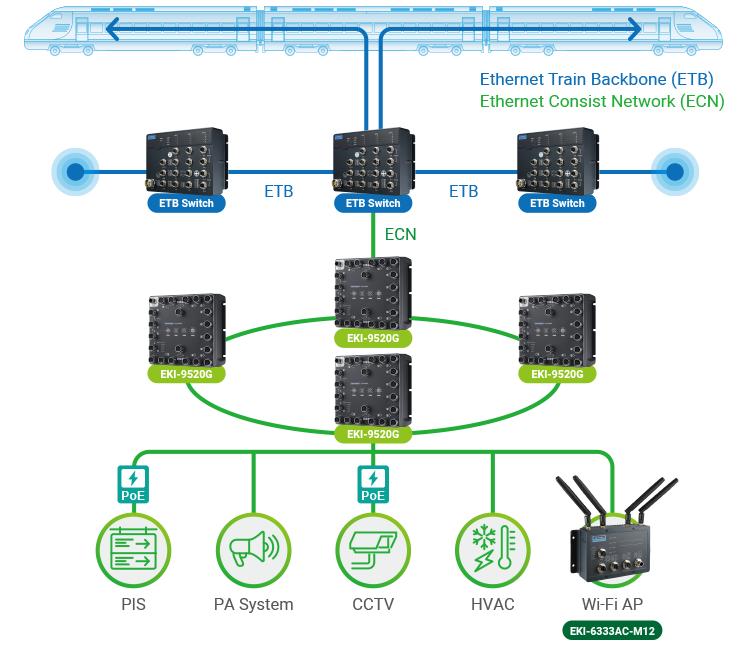

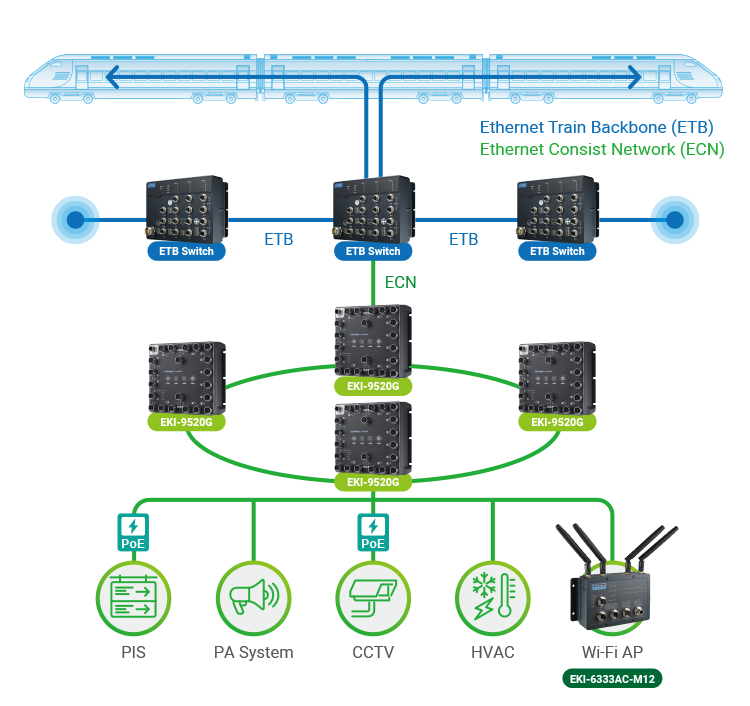

Within each train consist, the EKI-9520G serves as the ECN core switch, connecting the ETB backbone to onboard systems such as PIS, PA, CCTV, HVAC, and Wi-Fi APs — with built-in PoE that directly powers cameras and speakers.
