Passive Backplanes
Passive Backplanes series are easily customized which include PCI boards, ISA boards, PICMG 1.3 full-sized, PICMG 1.0 full-sized and half-sized single board computers. All backplane products provide with matching chassis and outstanding expansion flexibility.
Features & Benefits
How to Select the Slot SBCs & Passive Backplanes

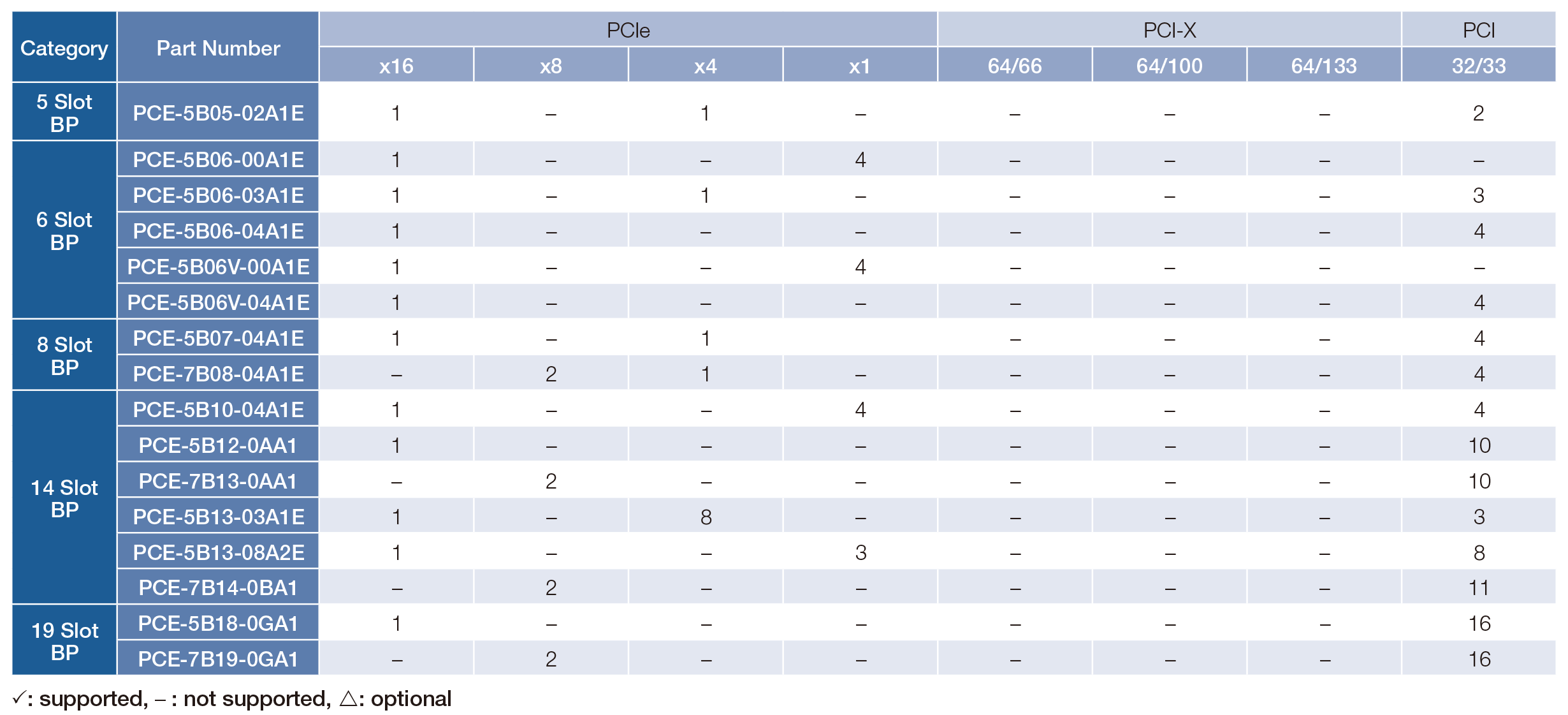

PICMG1.3 Full-Size Backplanes Selection and Compatible with Chassis

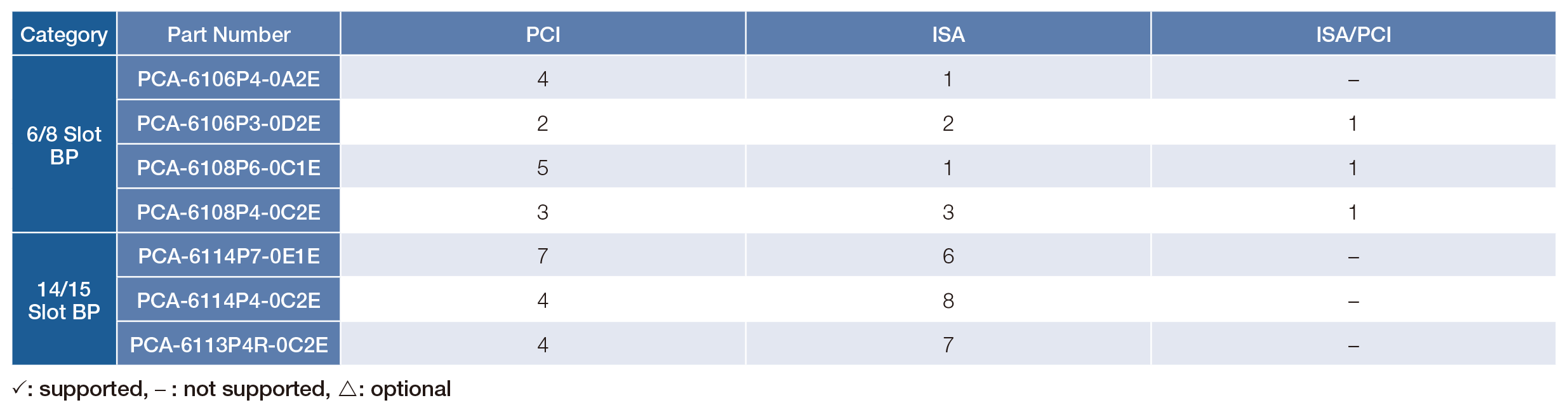

PICMG1.0 Full-Size Backplanes Selection and Compatible with Chassis

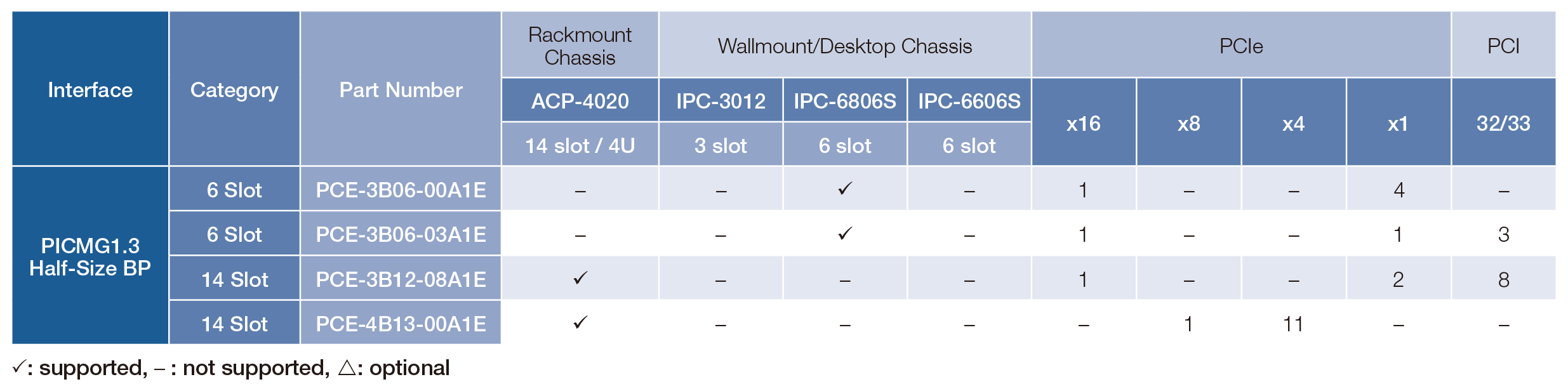

PICMG1.3 Half-Size Backplanes Selection and Compatible with Chassis

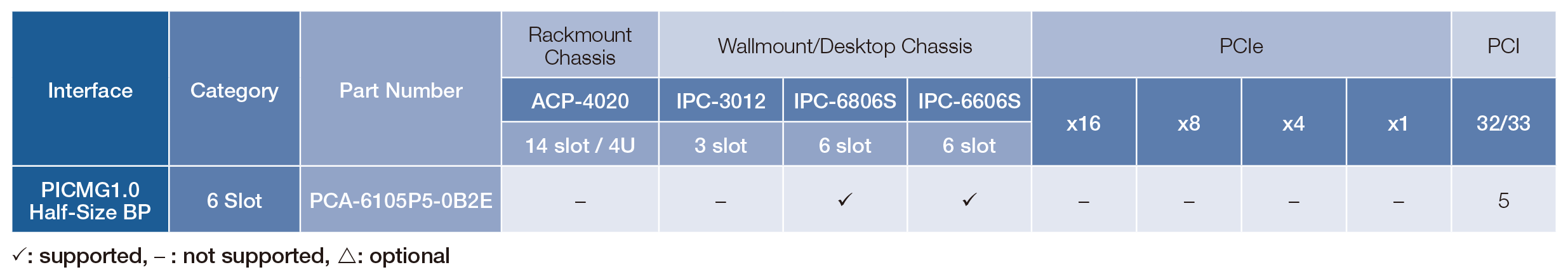

PICMG1.0 Half-Size Backplanes Selection and Compatible with Chassis
-
Learn MorePICMG 1.3 Full-Size SBC Backplanes
PICMG 1.3 Full-Size SBC Backplanes are the expansion interface for Slot SBC and provide with flexibility, performance and shorten MTTR. The SBC backplane with space-saving design enables better cooling which is the ideal solution for various industrial applications.
-
Learn MorePICMG 1.0 Full-Size SBC Backplanes
PICMG 1.0 Full-Size SBC Backplanes product line offer you low MTTR (Mean Time to Repair) approaches. The SBC backplanes are the most flexible and expansible solutions for industrial and slot-hungry applications.
-
Learn MorePICMG 1.3 Half-Size SBC Backplane
PICMG1.3 SHB backplanes, which are compatible with half-size PICMG1.3 slot SBC. Our PCI/ISA SBC Backplane product line offers levels of mainstream and server-grade choices, supporting your rugged needs in various industrial applications.
-
Learn MorePICMG 1.0 Half-Size SBC Backplane
PICMG 1.0 Half-size SBC Backplane designed with industry-standard ISA and PCI gold fingers for expansion. SBC Backplane equipped with fanless cooling and low-power configurations especially suitable for mid-range industrial applications.
-
-50/PCA-6120P18-0A2E20240517193538.jpg)
PCA-6120P18-0A
20-slot 1 ISA, 17 PCI, 1 PICMG/PCI, 1 PICMG Backplanes
-
-50/PCE-3B06-0020251211174158.png)
PCE-3B06-00
PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000/PCE-4000 series and IPC chassis: IPC-3026, IPC-6806S
-
-50/未命名設計-(59)20250121132955.png)
PCE-5B18-0G
20-slot Rackmount Chassis Backplanes
-
/PCA-6120P12-0A2E_S20110502100437.gif)
PCA-6120P12-0A
20-slot 7 ISA, 11 PCI, 1 PICMG/PCI,1 PICMG Backplanes
-
/PCE-4B13-00_8-120190425165919.jpg)
PCE-4B13-00
PICMG 1.3 Half-size server-grade SHB Backplanes, Compactable with PCE-4000 series and IPC chassis: ACP-4020
-
-50/未命名設計-(61)20250121142748.png)
PCE-7B19-0G
20-slot Rackmount Chassis Backplanes
-
/PCE-3B12-08_Front_G20140108114953.gif)
PCE-3B12-08
PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000 series and IPC chassis: ACP-4020
-
/PCE-5B13-03_3D _S20180720154546.jpg)
PCE-5B13-03
13-slot BP for 14-slot chassis
-
-50/PCE-3B06-0320251211175047.png)
PCE-3B06-03
-
/PCA-6105P5-0B2E_front_left_G20110510094453.gif)
PCA-6105P5-0B
5-slot ,5 PCI Backplanes
-
/PCA-6114P4-0C2E_G20100830101549.gif)
PCA-6114P4-0C
14-slot 1 ISA, 11 PCI, 1 PICMG/PCI, 1 PICMG Backplanes
-
/PCE-7B13-64_720140930224823.gif)
PCE-7B13-0A
PICMG 1.3 Full-Size SHB Backplanes, Server Grade Backplanes, 14-slot Rackmount Chassis Backplanes
-
/PCE-7B08-04A1E_G20100830141749.gif)
PCE-7B08-04
8-slot BP for 8-slot chassis
-
/PCA-6114P12-0B3E_G20100830100831.gif)
PCA-6114P12-0B
14-slot 1 ISA, 11 PCI, 1 PICMG/PCI, 1 PICMG Backplane
-
/PCA-6114P10-B_G20100830100519.gif)
PCA-6114P10-0B
14-slot 2 ISA, 10 PCI, 2 PICMG Backplanes
-
/PCA-6113P4R-02_G20100830095744.gif)
PCA-6113P4R-0C
13-slot 8 ISA, 4 PCI, 2 PICMG Backplanes
-
/PCA-6114P7-0D3E-01_G20140911163621.gif)
PCA-6114P7-0E
14-slot PCI/ISA Backplanes
-
/PCA-5B13-08A1E_G20100830140059.gif)
PCE-5B13-08
13-slot BP for 14-slot chassis
-
/PCA-6108P4-0C2E_G20100830094307.gif)
PCA-6108P4-0C
8-slot 3 ISA, 3 PCI, 1 PICMG/PCI
-
-50/未命名設計-(84)20251211164017.png)
PCE-5B12-0A
12-slot BP for 14-slot Chassis
-
/PCE-5B10-04-front-G20140310172219.gif)
PCE-5B10-04
10-slot BP for 14-slot chassis
-
/PCA-6108P6-0B4E_G20140911161709.gif)
PCA-6108P6-0C
8-slot PCI/ISA Backplanes
-
/PCA-6106P3-0D2E-01_G20100830091450.gif)
PCA-6106P3-0D
6-slot 2ISA, 2PCI,1PICMG,1PICMG/PCI Backplane
-
/PCE-5B07-04A1E_G20100830135425.gif)
PCE-5B07-04
7-slot BP for 8-slot chassis
-
PCE-5B06-00
6-slot BP for 6-slot chassis
-
/PCE-5B05_Front_G20100830134546.gif)
PCE-5B05-02
5-slot BP for 5-slot chassis
-
-50/PCE-5B06V-0420251211163528.png)
PCE-5B06V-04
6-slot Butterfly BP for 2U chassis
-
-50/PCE-5B06V-0020251211165325.png)
PCE-5B06V-00
-
-50/PCE-5B06-04A1E-(2)20251211164736.png)
PCE-5B06-04
-
-50/PCE-5B06-0320251211165016.png)
PCE-5B06-03
-
-50/PCA-6106P4-0A2E20230504142400.png)
PCA-6106P4-0A
6 slot PICMG BP,4PCI,2PICMG RoHS K
-
-50/未命名設計-(88)20251226103505.png)
PCE-7B14-0B
-
-50/PCE-5B09-06_Front20260114184158.png)
PCE-5B09-06
10 Slots PICMG1.3BP, PCIe x16*1, PCIe x4*1, PCI*6
