标准型(S系列)

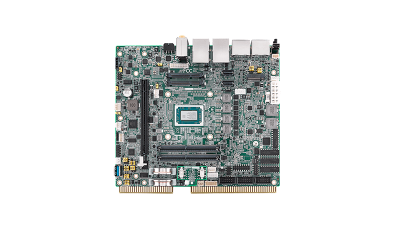

DPX-S451

The DPX®-S451 is based on the AMD Ryzen™ Embedded R2000 Series platform. . Four DisplayPort ports and graphics card are supported

  • Very high performance AMD Ryzen™ Embedded R2000 processors
  • Quad and dual core APUs up to 3.35 (3.7) GHz
  • Radeon™ VEGA GPU with up to 8 compute units
  • Four independent 4k monitors supported
  • Comprehensive gaming features
  • 12V DC single input or ATX power
  • Full featured driver API for IO and security

技术资源链接：

产品型录 技术文件下载
  • The DPX®-S451 is based on the AMD Ryzen™ Embedded R2000 Series platform. . Four DisplayPort ports and graphics card are supported

规格

Processor
CPU
  • AMD Ryzen™ Embedded R2544 SoC with AMD Radeon™ Graphics
  • AMD RyzenTM Embedded R2514 SoC with AMD Radeon™ Graphics
  • AMD RyzenTM Embedded R2314 SoC with AMD Radeon™ Graphics
Frequency
  • 3.35 (3.7) GHz
  • 2.1 (3.7) GHz
  • 2.1 (3.5) GHz
Memory
Max. Capacity
  • 32GB (16GB per SO-DIMM)
  • 32GB (16GB per SO-DIMM)
  • 32GB (16GB per SO-DIMM)
I/O
COM Port
  • 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
  • 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
  • 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
Digital I/O
  • 32 input / 32 output
  • 32 input / 32 output
  • 32 input / 32 output
Video Output
  • 4 x DP++
  • 4 x DP++
  • 4 x DP++
USB
  • 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0)
  • 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0)
  • 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0)
Ethernet
LAN
  • 2 x GbE
  • 2 x GbE
  • 2 x GbE
Audio
Interface
  • HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
  • HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
  • HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
Expansion
PCIe
  • Full speed Gen 3 PCI-E graphics expansion slot x16 slot (x8 PCI-E)
  • Full speed Gen 3 PCI-E graphics expansion slot x16 slot (x8 PCI-E)
  • Full speed Gen 3 PCI-E graphics expansion slot x16 slot (x8 PCI-E)
Display
Controller
  • AMD Integrated Radeon VEGA graphics engine
  • AMD Integrated Radeon VEGA graphics engine
  • AMD Integrated Radeon VEGA graphics engine
Security
SRAM
  • 8MB
  • 8MB
  • 8MB
Intrusion inputs
  • 8
  • 8
  • 8
TPM
  • 2.0
  • 2.0
  • 2.0
EEPROM, ROM, IDROM
  • Y
  • Y
  • Y
Physical
Dimension (mm)
  • 200 x 170 mm
  • 200 x 170 mm
  • 200 x 170 mm
