标准型(S系列)

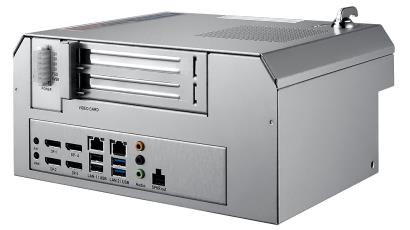

DPX-S2451

High Performance AMD Ryzen™ Embedded R2000 Multi-Screen Gaming Platform

  • Rugged logic box design
  • Security and access to meet the requirement of the gaming industry
  • Quad and dual core APUs up to 3.35 (3.7) GHz
  • Full gaming features set
  • High performance Radeon™ VEGA GPU or PCI-Express graphics
  • Support for up to 150W ¾ length double-width graphics cards
  • 12VDC or ATX power supply compatible
  • "Futureproof" removable I/O shield design allow upgrade to future DPX-S motherboards, Easy service SSD/HDD module

技术资源链接：

产品型录 技术文件下载
  • High Performance AMD Ryzen™ Embedded R2000 Multi-Screen Gaming Platform

规格

Processor
CPU
  • AMD Ryzen™ Embedded R2544 SoC with AMD Radeon™ Graphics
  • AMD RyzenTM Embedded R2514 SoC with AMD Radeon™ Graphics
  • AMD RyzenTM Embedded R2314 SoC with AMD Radeon™ Graphics
Frequency
  • 3.35 (3.7) GHz
  • 2.1 (3.7) GHz
  • 2.1 (3.5) GHz
Memory
Max. Capacity
  • 32GB (16GB per SODIMM)
  • 32GB (16GB per SODIMM)
  • 32GB (16GB per SODIMM)
I/O
COM Port
  • 10 (5 x RS232, 2 x CCTalk/RS232, 1 x RS232/TTL, 1 x ID003/RS232, 1 x RS232/485)
  • 10 (5 x RS232, 2 x CCTalk/RS232, 1 x RS232/TTL, 1 x ID003/RS232, 1 x RS232/485)
  • 10 (5 x RS232, 2 x CCTalk/RS232, 1 x RS232/TTL, 1 x ID003/RS232, 1 x RS232/485)
USB
  • 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0)
  • 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0)
  • 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0)
Digital I/O
  • 32 inputs / 32 outputs
  • 32 inputs / 32 outputs
  • 32 inputs / 32 outputs
Video Output
  • 4 x DP++
  • 4 x DP++
  • 4 x DP++
Ethernet
LAN
  • 2 x GbE
  • 2 x GbE
  • 2 x GbE
Audio
Interface
  • HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
  • HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
  • HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
Display
Controller
  • AMD Integrated Radeon VEGA graphics engine
  • AMD Integrated Radeon VEGA graphics engine
  • AMD Integrated Radeon VEGA graphics engine
Expansion
PCI Express x 16
  • PCI-E x16 graphics card slot
  • PCI-E x16 graphics card slot
  • PCI-E x16 graphics card slot
Security
SRAM
  • 8MB
  • 8MB
  • 8MB
Intrusion inputs
  • 8
  • 8
  • 8
TPM
  • 2.0
  • 2.0
  • 2.0
EEPROM, ROM, IDROM
  • Y
  • Y
  • Y
General
Power Input
  • 12VDC or ATX
  • 12VDC or ATX
  • 12VDC or ATX
Physical
Dimension (mm)
  • 260 x 214 x 124 mm
  • 260 x 214 x 124 mm
  • 260 x 214 x 124 mm
