Unmanaged PoE Switches

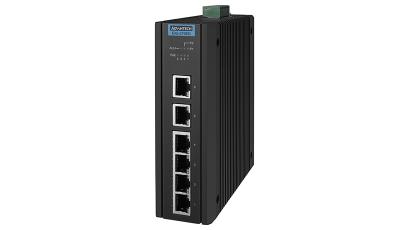

EKI-2706G-2GPI

6GE端口千兆非网管型PoE工业交换机

  • 6 x 千兆 RJ-45网口
  • 支持4 x IEEE 802.3at/af PoE端口
  • 每个PoE端口输出功率最大支持30W
  • 支持9k bytes的巨型帧传输
  • IP30金属结构 DIN导轨
  • 12~48VDC冗余双电源输入和1个继电器输出
  • 宽工作温度：-40 ~ 75°C

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 6GE端口千兆非网管型PoE工业交换机

规格

Interface
Port Number
  • 6
Ethernet Communication
RJ-45 Port Connector Type
  • 6 x RJ-45 ports
RJ-45 Transmission Speed
  • 10/100/1000 Mbps
RJ-45 Transmission Distance
  • 100 m
Fiber Transmission Distance
  • Up to 110 km
Power
Power Input (DC)
  • 12 ~ 48 VDC, redundant dual inputs
Power Operating Current
  • 1A @ 24 VDC
Power Consumption
  • Max. 4.32W (system)
Power Connector Type
  • 6-pin removable screw terminal (power & relay)
Certification
Ethernet Standard
  • IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3af/at
EMI
  • CE, FCC Class A
Safety
  • LVD 62368-1
EMC
  • EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
  • IEC 60068-2-27
Freefall
  • IEC 60068-2-32
Vibration
  • IEC 60068-2-6
PoE Information
PoE Port Number
  • 4
Switch Properties
MAC Table Size
  • 4096
Packet Buffer Size
  • 1.5M bit
Switch Fabric Speed
  • 6Gbps
Jumbo Frame
  • 9,216 bytes
Mechanism
Dimensions (W x H x D)
  • 46 x 140 x 130 mm (1.81 x 5.51 x 5.11 in.)
IP Rating
  • IP30
Enclosure (Metal)
  • Metal
Weight
  • 1 kg
Mounting
  • DIN-rail, Wall
Environment
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Relative Humidity
  • 5~95%
MTBF
Time
  • 1,053,047 hours
Method
  • Telcordia(Relax), GB
Warranty
Warranty Period
  • 5 years
Place of Production
Place of production
  • Taiwan
