Unmanaged PoE Switches

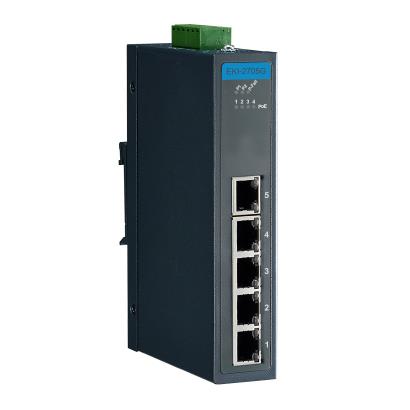

EKI-2705G-1GPI

4GE PoE+1GE, 非网管型工业交换机, IEEE802.3af/at, 24~48VDC, -40~75℃

  • 支持10/100/1000Mbps 自动协商（EKI-2705G）
  • 支持高达9k bytes巨型帧传输
  • DIN导轨，IP30金属结构
  • 冗余 24~48VDC电源输入
  • 4 x IEEE 802.3 af/at PoE /PoE+端口和1 x 千兆以太网端口

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 4GE PoE+1GE, 非网管型工业交换机, IEEE802.3af/at, 24~48VDC, -40~75℃

规格

Interface
Port Number
  • 5
  • 5
Ethernet Communication
RJ-45 Port Connector Type
  • 5 x RJ-45
  • 5 x RJ-45
RJ-45 Transmission Speed
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
RJ-45 Transmission Distance
  • 100 m
  • 100 m
Power
Power Input (DC)
  • 24 ~ 48 VDC
  • 24 ~ 48 VDC
Power Operating Current
  • 1A @ 24 VDC
  • 1A @ 24 VDC
Power Consumption
  • Max 2W
  • Max 2W
Power Connector Type
  • 6-pin removable screw terminal (power & relay)
  • 6-pin removable screw terminal (power & relay)
Certification
Ethernet Standard
  • IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
  • IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
EMI
  • CE, FCC Class A
  • CE, FCC Class A
Safety
  • UL 62368
  • UL 62368
Shock
  • IEC 60068-2-27
  • IEC 60068-2-27
Freefall
  • IEC 60068-2-32
  • IEC 60068-2-32
Vibration
  • IEC 60068-2-6
  • IEC 60068-2-6
EMS
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
PoE Information
PoE Port Number
  • 4
  • 4
Switch Properties
MAC Table Size
  • 2K
  • 2K
Packet Buffer Size
  • 1M bit
  • 1M bit
Jumbo Frame
  • 9,216 bytes
  • 9,216 bytes
Mechanism
Dimensions (W x H x D)
  • 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
  • 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
IP Rating
  • IP30
  • IP30
Enclosure (Metal)
  • Metal
  • Metal
Weight
  • 0.45 kg (1.0 lb)
  • 0.45 kg (1.0 lb)
Mounting
  • DIN-rail, Wall
  • DIN-rail, Wall
Environment
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
  • -40 ~ 85°C (-40 ~ 185°F)
Relative Humidity
  • 10~95%
  • 10~95%
MTBF
Time
  • 1,697,086 hours
  • 1,697,086 hours
Method
  • Telcordia(Relax), GB
  • Telcordia(Relax), GB
Warranty
Warranty Period
  • 5 years
  • 5 years
