Powerful 4G Routers: Essential Ports - ICR-3200

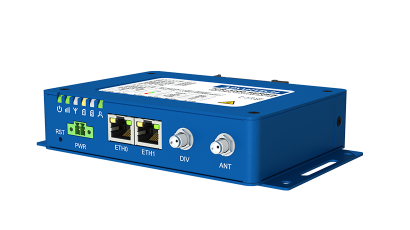

ICR-3241-1ND

ICR-3200, NAM, FirstNet, 2× Ethernet, 1× RS232, 1× RS485, Metal, Without Accessories

  • 4G LTE Cat.4 VPN Gateway for Industrial IoT applications - FirstNet Certified
  • LTE B2, B4, B5, B12, B13, B14, B66, B71
  • Carriers support; Verizon, AT&T, T-Mobile, FirstNet (Public Safety)
  • Powerful CPU with 1.3 GB storage to host customer SW applications
  • 2× SIM with cover, Dual SIM + eSIM
  • 2× Ethernet 10/100, 1× RS232, 1× RS485 and I/O
  • Robust metal cover with DIN and Wall mount options
  • Operational temperature range from -40 °C to +75 °C
  • Sleep mode & Power ignition & Backup real time clock,

技术资源链接：

产品型录 技术文件下载
  • ICR-3200, NAM, FirstNet, 2× Ethernet, 1× RS232, 1× RS485, Metal, Without Accessories

规格

Region
NAM
  • Yes
Interface
ETH Port(s)
  • 2
RS232
  • 1
I/O
  • 1 x DI + 1 x DO
Antenna Connectors
Cellular Antennas
  • 2 x SMA
Power
Power Input (DC)
  • 9 ~ 36 VDC
Sleep Mode
  • Yes
Environment
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Operating Humidity
  • 0~95%
Mechanism
Dimensions (W x H x D)
  • 129 x 31 x 94 mm
Enclosure (Metal)
  • Metal
Mounting (DIN-rail)
  • Yes
Mounting (Wall)
  • Yes
Software
Advances Software Tool
  • WebAccess / DMP

特点和优势

Engineering Portal
  • Products Information
  • Latest Firmware for Advantech cellular routers
  • Router Apps, Blog, FAQ, Dev Zone, Software update policy
