Redundant Power Supply

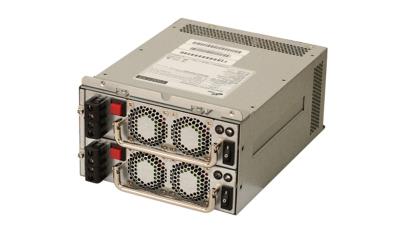

96PSR-D500WMIN

FSP DC to DC 110V-220V 500W Mini Redundant Power Supply with PMBus

  • Supports DC 110V/220V power source application with safety certification
  • High efficiency 80plus bronze label
  • With Japanese capacitors for longer product
  • Supports wide range working temperature, full load under 50°C
  • 3 years worldwide warranty
  • Product certified by safeties and compatible test with systems

技术资源链接：

产品型录
  • FSP DC to DC 110V-220V 500W Mini Redundant Power Supply with PMBus

规格

Power Supply
Form Factor
  • Mini
Output Power
  • 500W
Input Power
  • DC to DC
Input Current (maximum)
  • 110V @ <7A; 220V @ <3.5A
Input Voltage
  • 110 ~ 220V
Input Frequency
  • 47 ~ 63 Hz
Efficiency
  • 84%
Operating Temperature
  • 0 ~ 50°C
Storage Temperature
  • -20 ~ 80°C
Storage Humidity
  • 5 ~ 90% RH
Output Rating
  • +3.3V @ 20A;
    +5V @ 20A;
    +12V1 @ 16A;
    +12V2 @ 16A;
    +12V3 @ 16A;
    -12V @ 0.5A;
    -5V @ 0.3A;
    +5Vsb @ 3A;
MTBF (hours @ 25°C)
  • 100K
Dimensions (D x W x H)
  • 190 x 150 x 84 mm
Safety
  • CE
Manufacturer
  • FSP
