EKI-5000 Series

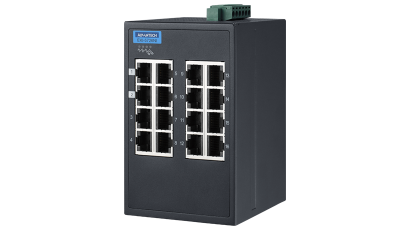

EKI-5726NI

16端口千兆以太网交换机

  • 提供16个带自动MDI/MDI-X的千兆以太网端口
  • 支持10/100/1000 Mbps自动协商
  • 12-48V DC（8.4-52.8VDC）宽范围电源输入和P-Fail继电器
  • 巨型帧支持（最多9216字节）
  • 增强自动化协议的流量优先级
  • 支持PROFINET一致性——A级

认证：

技术资源链接：

产品型录 技术文件下载
  • 16端口千兆以太网交换机

规格

Certification
EMI
  • CE, FCC
  • CE, FCC
EMS
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
Safety
  • UL508, Class 1 Division 2, ATEX
  • LVD 62368-1
Environment
Temperature (Min. Operating)
  • -40°C (-40°F)
  • -40°C (-40°F)
Temperature (Max. Operating)
  • 75°C (167°F)
  • 75°C (167°F)
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
  • -40 ~ 85°C (-40 ~ 185°F)
Interface
Port Number
  • 16
  • 16
Ethernet Communication
RJ-45 Port Connector Type
  • 16 x RJ-45 (Ethernet)
  • 16 x RJ-45 (Ethernet)
RJ-45 Transmission Distance
  • 100 m
  • 100 m
RJ-45 Transmission Speed
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
Mechanism
Dimensions (W x H x D)
  • 74 x 120 x 84 mm
  • 74 x 120 x 84 mm
IP Rating
  • IP30
  • IP30
Weight
  • 1.2 kg
  • 0.86 kg (1.9 lbs)
Power
Power Connector Type
  • 6-pin removable screw terminal (power & relay)
  • 6-pin removable screw terminal (power & relay)
Power Consumption
  • 8W
  • 8W
Power Input (DC)
  • 12 ~ 48 VDC
  • 12 ~ 48 VDC
Power Operating Current
  • 0.36A @ 24V
  • 0.36A @ 24V
Switch Properties
Jumbo Frame
  • 9,216 bytes
  • 9,216 bytes
MAC Table Size
  • 8K
  • 8K
Packet Buffer Size
  • 4.1M bit
  • 4.1M bit
Switch Fabric Speed
  • 32Gbps
  • 32Gbps
Warranty
Warranty Period
  • 5 years
  • 5 years
Protection
Overload Current
  • Present
  • Present
Reverse Polarity
  • Present
  • Present

特点和优势


Advantech's EKI-2000 Series are the best deal offer for your Ethernet connections. Their super-slim IP30 metal casing design provides high reliability to quickly deliver continuous data transmission with high degree of security, making them an ideal option for your Ethernet solution.

Contact Us

Unmanaged Switch Plus Function Beyond Simple Connectivity

Unmanaged switch PLUS is a product concept that includes several innovative series. It introduces intelligent added features tailored for OT engineers, solving real-world challenges without IT complexity. Designed to enhance productivity, it keeps networking simple and effective in industrial environments.

LEARN MORE
High Versatile Switch Products

High Versatile Switch Products

  • Ranging from 5 to 28 ports. More than 30 skus.
  • Support din rail, wall mount or rack mount design
  • Support fast Ethernet or gigabit transmission
  • Optional fiber ports help you conquer the distance boundary
  • PoE functionality serves power and data transmission with one cable
Download Selection Guide
Plug-and-Play

Plug-and-Play

  • No setting efforts
  • No compatibility issues
  • Goes along with any network infrastructure
  • Slim size for instant installation with minimum costs and efforts, allowing users to upgrade to an intelligent plant at ease
Mini 8-cm Ethernet Switch
Robust Communication Solutions

Robust Communication Solutions

  • Super slim IP30 metal casing provides reliable & compact management
  • Support wide operating temperatures from -40 to 75oC
